Stitcher Head Assembly, Medium Clincher Plate

Part Number: DB75MPHD231/2

The DB75 is a high-quality alternative replacement for Muller HK75 stitcher heads - Muller #'s 0881.8170 & 0881.8070. Almost all parts are interchangeable between the DB75 and Muller original HK75 heads.

Includes the stitcher head, clincher assembly and wire guide.

$2,840.00 /EACH
Stitcher Head Assembly, Minuteman
Stitcher Head Assembly
Stitcher Head Assembly, Medium Clincher Plate
Stitcher Head Assembly, Long Clincher Plate
Stitcher Head Assembly, Minuteman
Stitcher Head Assembly
Stitcher Head Assembly, Long Clincher Plate
EACH
Description Parts Finder

Specifications

Technical Data
Max Capacity: 2 sheets to 5mm
Crown Width: 13mm
Wire Sizes: 23, 24 gauge round (0.8mm)
Minimum Center-to-Center: 75mm
Clincher Assembly: 4.1" tall rectangle
Machines: Presto, Valore, Minuteman (built before 2004)



Documents


Operation Manual



Bonnet and Wire Guide Spring, Sub-Assemblies

Click part numbers in the diagram for product pages

Driver and Bender Inserts

Click Part Numbers in the diagram for product pages

Cutter Box Assembly

Click part numbers in the diagram for product pages



Feed Gear Assembly

Click part numbers in the diagram for product pages



Wire Holder Assemblies

Click part numbers in the diagram for product pages

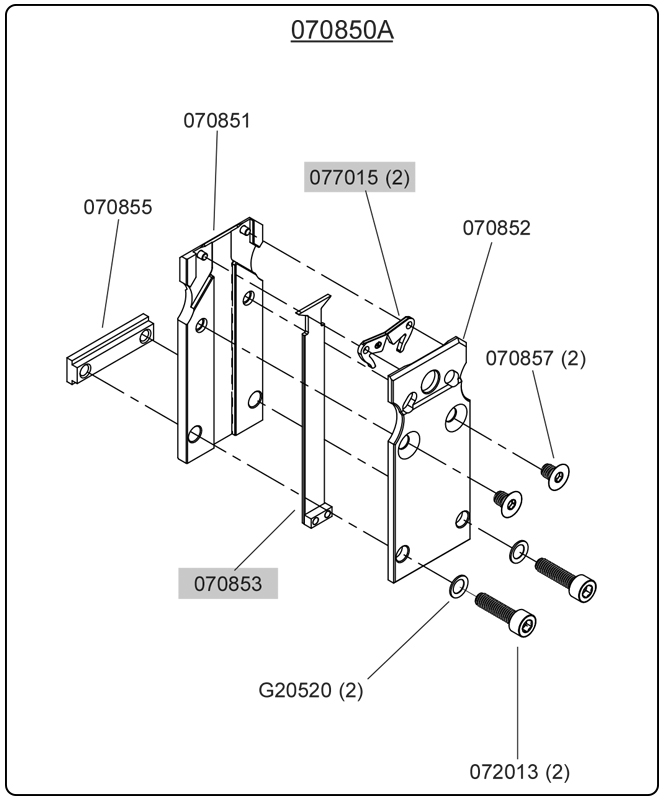

Medium Clincher Plate

Used on all Presto & Valore machines. Used on Minuteman (1509) machines built after Jan. 2004.

Click part numbers in the diagram for product pages
