Stitcher Head Assembly, Long Clincher Plate

Name: Stitcher Head Assembly, Long Clincher Plate
Brand: Muller Martini
SKU: DB75LPHD231/2
Price: 2840.00 USD
Availability: InStock

Part Number: DB75LPHD231/2

The DB75 is a high-quality alternative replacement for Muller HK75 stitcher heads - Muller #'s 0881.8170 & 0881.8070. Almost all parts are interchangeable between the DB75 and Muller original HK75 heads.

Includes the stitcher head, clincher assembly and wire guide.

$2,840.00 /EACH

Stitcher Head Assembly, Minuteman

Stitcher Head Assembly

Stitcher Head Assembly, Medium Clincher Plate

Stitcher Head Assembly, Long Clincher Plate

Stitcher Head Assembly, Minuteman

Stitcher Head Assembly

Stitcher Head Assembly, Medium Clincher Plate

Qty

EACH

Description Parts Finder

Specifications

Technical Data
Max Capacity:	2 sheets to 5mm
Crown Width:	13mm
Wire Sizes:	25 gauge round (0.6mm)
Minimum Center-to-Center:	75mm

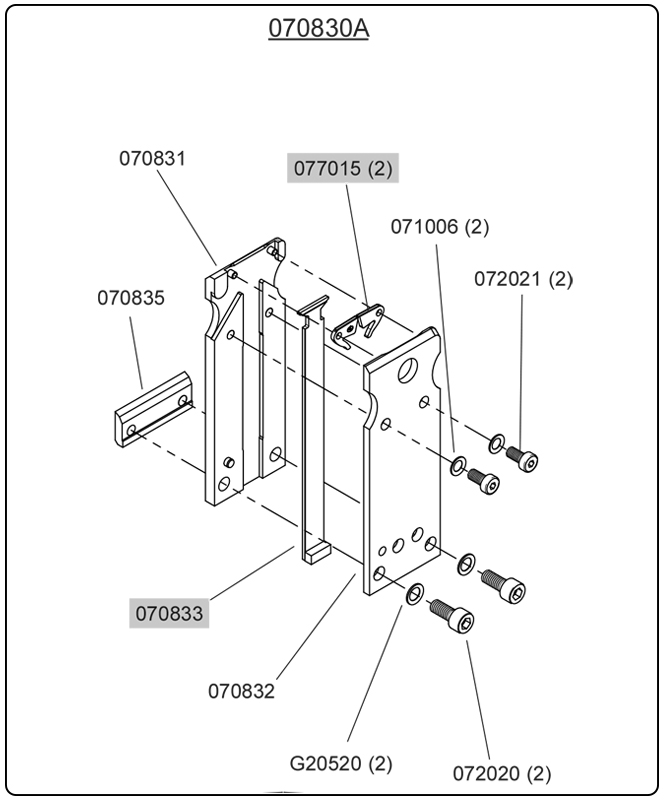

Clincher Assembly:	4.8" tall rectangle
Machines:	Bravo Plus, Prima (built after 2004)
