Becker DVT 3.140 Vacuum/Pressure Pump

Part Number: DVT3.140

The DVT 3.140 is an oil-free combination blast air/vacuum pump. It's rugged and durable design provides continuous operation for printing and packaging industry applications. The pump utilizes self-lubricating graphite vanes, requires minimal maintenance, and removes the need for oil changes. Each unit comes standard with a built-in inlet filter, an aftercooler, and pressure/vacuum regulating valves.

• 100% dry operation
• Long vane life
• Continuous dry duty rated
• Single shaft direct drive
• 94 SCFM
• Simultaneous 8.7 PSIG and 18 in. Hg

Please call for pricing or use this form to reach out about this item.

Contact us for pricing
  • Pump Type Combined
  • Pump CFM 94 CFM
  • Max Pressure 8.7 PSIG
  • Max Vacuum 18 in. Hg
  • Power 12.1 HP
Description

Features

• Low operation and maintenance costs
• Cool operation
• No cycling times
• Quiet operation - no silencer enclosures necessary
• Small footprint for space savings
• Straightforward construction for fast and easy service on-site to reduce downtime

Specifications

Technical Data
Open Flow SCFM: 94
Maximum Vacuum: 18 in Hg
Maximum Pressure: 8.7 PSIG
Horsepower: 12.1 HP
Noise Level: 79 DB(A)
Weight w/o Motor: 392 lbs

Documents

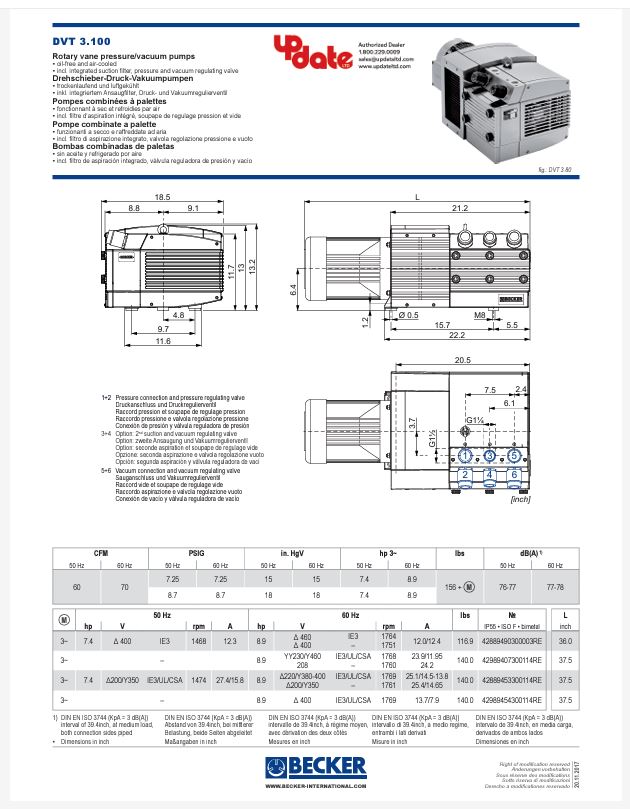

Data Sheet Operation
Manual		  Maintenance
Guide		 Spare Parts
List
