| General Information | |
| Material: Vinyl | |
| Mounting Type: Screw and Collar | |
| Bellows: 3 | Suggested Use: Uneven Surface |

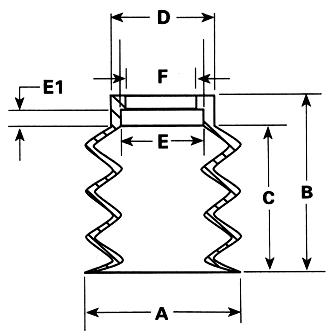

 | Style D Dimensions | in | mm |
| Dimension A | 1.48 | 37.6 | |
| Dimension B | 1.72 | 43.7 | |
| Dimension C | 1.45 | 36.8 | |
| Dimension D | 0.97 | 24.6 | |
| Dimension E | 0.82 | 20.8 | |
| Dimension E1 | 0.12 | 3.0 | |
| Dimension F | 0.63 | 16 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
