| General Information | |
| Material: Vinyl | |
| Mounting Type: Push on | |
| Bellows: 2 | Suggested Use: Label Placement |

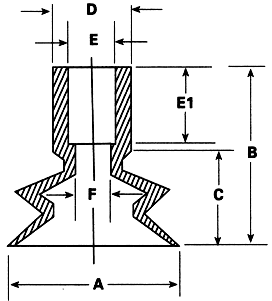

 | Style K Dimensions | in | mm |
| Dimension A | 1.21 | 30.8 | |
| Dimension B | 1.28 | 32.5 | |
| Dimension C | 1.09 | 27.7 | |
| Dimension D | 0.5 | 12.7 | |
| Dimension F | 0.27 | 6.9 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
