| General Information | |
| Material: Vinyl | Thread Size: 1/4 NPT Female |
| Mounting Type: Threaded | Cleats: No |
| Bellows: 0 | Suggested Use: Box Forming |

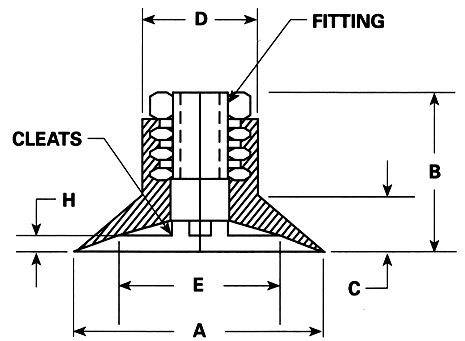

 | Style E Dimensions | in | mm |
| Dimension A | 1.51 | 38.4 | |
| Dimension B | 1.15 | 29.2 | |
| Dimension C | 0.32 | 8.1 | |
| Dimension D | 0.89 | 22.6 | |
| Dimension E | 0.57 | 14.5 | |
| Dimension H | 0.37 | 9.4 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
