HAT-8P Processing Belt 1/2"

Name: HAT-8P Processing Belt 1/2"
Brand: Habasit
SKU: HAT-8P-1/2
Price: 2.41 USD
Availability: InStock

Part Number: HAT-8P-1/2

Main Industry Segments: Materials handling, packaging, paper converting, paper manufacturing, paper manufacturing and processing, paper printing and finishing

Applications: General conveying belt, machine tape, paper handling belt

Special Features: Abrasion resistant, constant coefficient of friction, high coefficient of friction surface, oil resistant

$2.41 /PER FOOT

HAT-8P Processing Belt 3/4"

HAT-8P Processing Belt 1"

HAT-8P Processing Belt 1-1/4"

HAT-8P Processing Belt 1-1/2"

HAT-8P Processing Belt 2"

HAT-8P Processing Belt 20mm

HAT-8P Processing Belt 30mm

Belting Thickness (mm) 2.00mm
Belting Joining Method Thermofix

Qty

PER FOOT

Description

Specifications

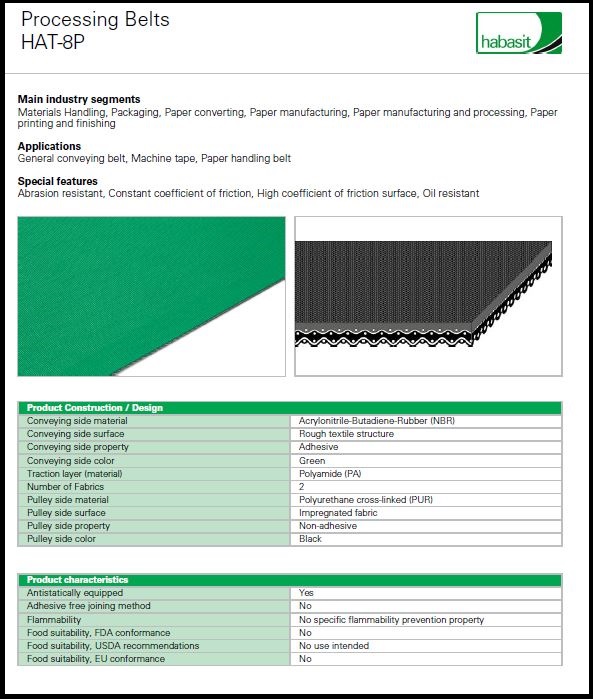

Product Construction
Conveying Side Material:	Acrylonitrile-Butadiene-Rubber (NBR)
Conveying Side Surface:	Rough textile structure
Conveying Side Property:	Adhesive
Conveying Side Color:	Green
Traction Layer Material:	Polyamide (PA)
Number of Fabrics:	2
Pulley Side Material:	Polyurethane cross-linked (PUR)
Pulley Side Surface	Impregnated fabric
Pulley Side Property:	Non-adhesive
Pulley Side Color	Black

Product Data

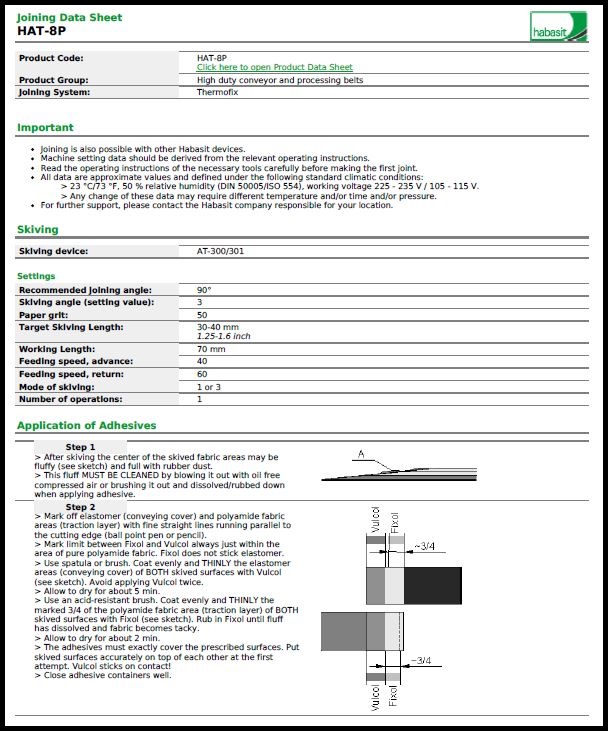

Joining Method:	Thermofix
Belt Thickness:	2.00mm (0.08 in)
Anti-Statically Equipped:	Yes
Elastic:	No
Min Operating Temp:	0° C (32° F)
Max Operating Temp:	100° C (212° F)
Min Pulley Diameter:	25mm (0.98 in)
