Rhin-O-Tuff

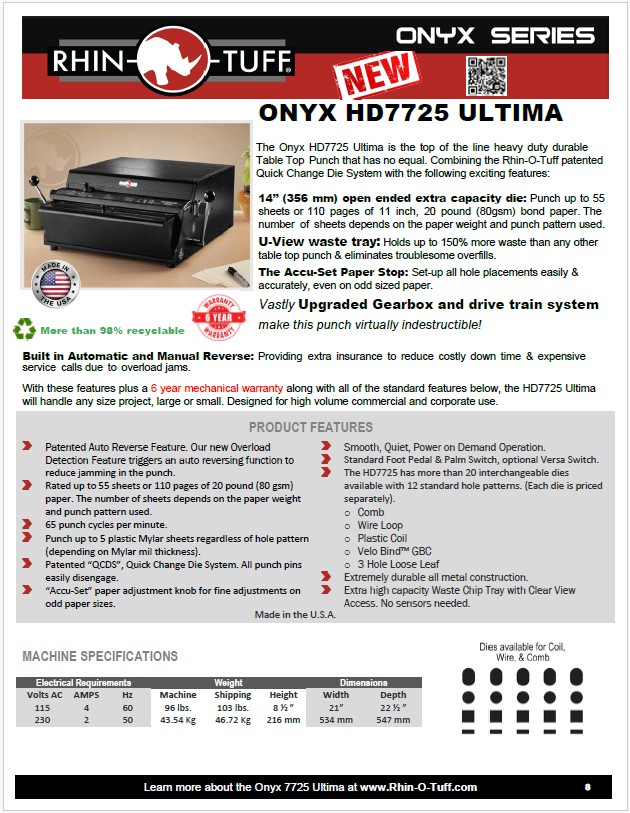

The Onyx HD7725 Ultima is a top-of-the-line, heavy-duty tabletop punching machine built for high-volume commercial and corporate use. Featuring a 14" open-ended die and a patented Quick Change Die System, it can punch up to 55 sheets (or 110 pages) of 20 lb. paper at 65 cycles per minute. The machine includes an automatic and manual jam-reverse function, the Accu-Set paper stop for precise alignment, and a U-View waste tray with 150% more capacity. With over 20 interchangeable dies available and a 6-year mechanical warranty, it's engineered for durability, precision, and unmatched productivity.
• High Punch Capacity - rated up to 55 sheets of 20 lb. (80gms) bond paper. The number of sheets depends on the paper weight and punch pattern used.
• Fast Cycle Times - achieve 65 cycles per minute
• E-Z Change Dies - switch punch patterns in a few quick and easy steps
• Diverse Punch Patterns - more than 20 interchangeable die patterns available in comb, wire loop, plastic coil, Velo bind, and 3 hole loose leaf
• Jam Reverse - has both automatic and manual reversing feature for removing pin or die jams
• Longevity - machine includes a 6 year mechanical warranty, ensuring confidence in durability
| Technical Data | |
|---|---|
| Model: | ONYX HD7725 |
| Punch Width: | 14" (open-ended) |
| Punch Capacity: | 55 sheets (110 pages) of 20 lb. (80 GSM) |
| Cycles per Minute: | 65 |
| Electrical: | 115 VAC, 4 Amp, 60 Hz (standard) |
| Dimensions: | 21" W x 22.5" D x 8.5" H |
| Machine Weight: | 96 lbs. |
• Punch Dies - Choose from a variety of punch hole patterns and binding types
• Pick-A-Lift - Separate documents and pick up the same number of sheets every time
• Coil Inserter - Quickly insert plastic coil into your punched project
• Wire Closer - Seamlessly thread wire into the spine and close it in one simple step
• Comb Opener - Open comb elements for easy document binding
• Palm Switch - Utilize a table-top palm switch to activate your punch
• Crimping Pliers - A handy tool for crimping ends of plastic spiral binding
| Model Name | OD4012 | HD7000 | HD7500H | HD7725 | HD7725H | CBS3000 |
|---|---|---|---|---|---|---|
| Model: |  |  |  |  |  |  |
| Punch Type: | Vertical | Vertical | Horizontal | Vertical | Horizontal | Vertical |
| Punch Width: | 11.7" | 14" | 24" | 14" | 14" | 11.7" |
| Capacity: | 60 pages | 80 pages | 80 pages | 110 pages | 110 pages | 40 pages |
| Cycles per Minute: | 65/min | 56/min | 53/min | 65/min | 65/min | 40/min |
| Hole Patterns: | Coil, Wire, Comb | Coil, Wire, Comb | Coil, Wire, Comb | Coil, Wire, Comb | Coil, Wire, Comb | Coil |
| Weight: | 40 lbs. | 70 lbs. | 148 lbs. | 96 lbs. | 88 lbs. | 75 lbs. |
Combine other Rhin-O-Tuff products to increase efficiency. Check the options below to create your own modular system for coil, wire, or comb binding. You'll need one of each item for a complete system.
Coil Binding
Comb Binding
Wire Binding
