• Laminates up to 27"- Desktop design is perfect for small work areas and laminates documents up to 27" wide
• Easy to Use Control Panel -LED display gives you precise control of heat and speed, while giving you the versatility to start, stop, and reverse the rollers
• Multiple Safety Features -Built-in sleep mode shuts off the heat if machine is idle for two hours. Safety latches on the heat shield and feed tray make sure the R27 only operates when ready.
• Large Heated Rollers - Large 2.17" heated rollers give you a perfect seal when laminating multiple items
| Technical Data | |
|---|---|
| Model: | ProLam R27 |
| Warm Up Time: | 20 min |
| Adjustable Temperature: | 320° F max |
| Laminating Speed: | 9 Settings (up to 3.6 ft/min) |
| Max Film Thickness: | 10 mil |
| Max Film Width: | 27" |
| Core Size: | 1" |
| Heated Roller Size: | 2.17" (55mm) |
| Sleep Mode: | Yes, after 2 hours |
| Reverse Switch: | Yes |
| Machine Dimensions: | 36.25" W x 12" H x 16" D |
| Power Consumption: | 1250 watts, 11.4 amp |
| Weight: | 93 lbs |
| Warranty: | One Year |
 |  |

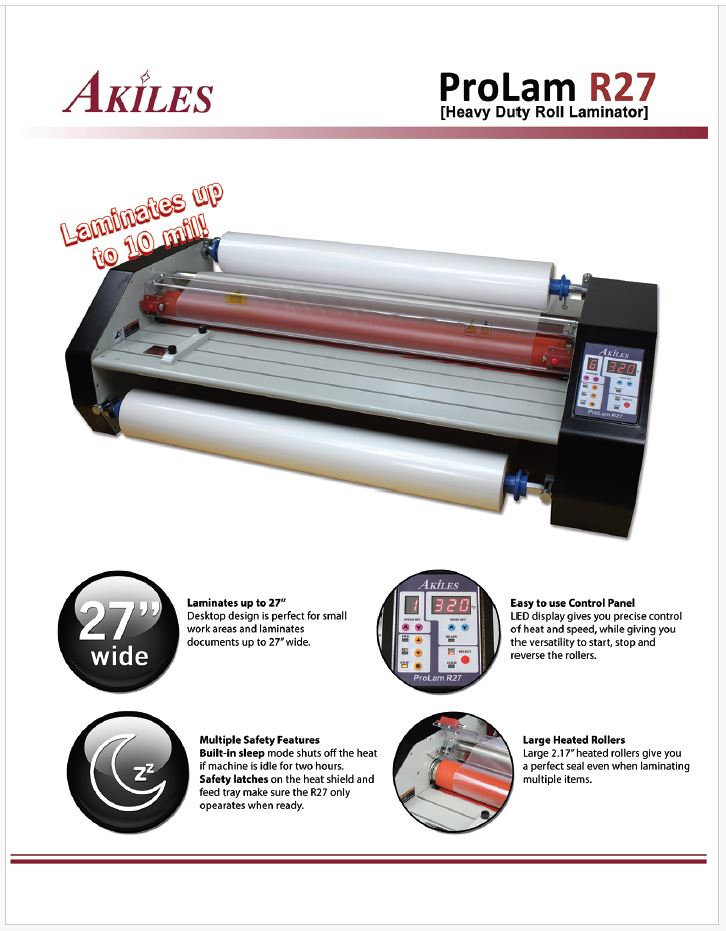

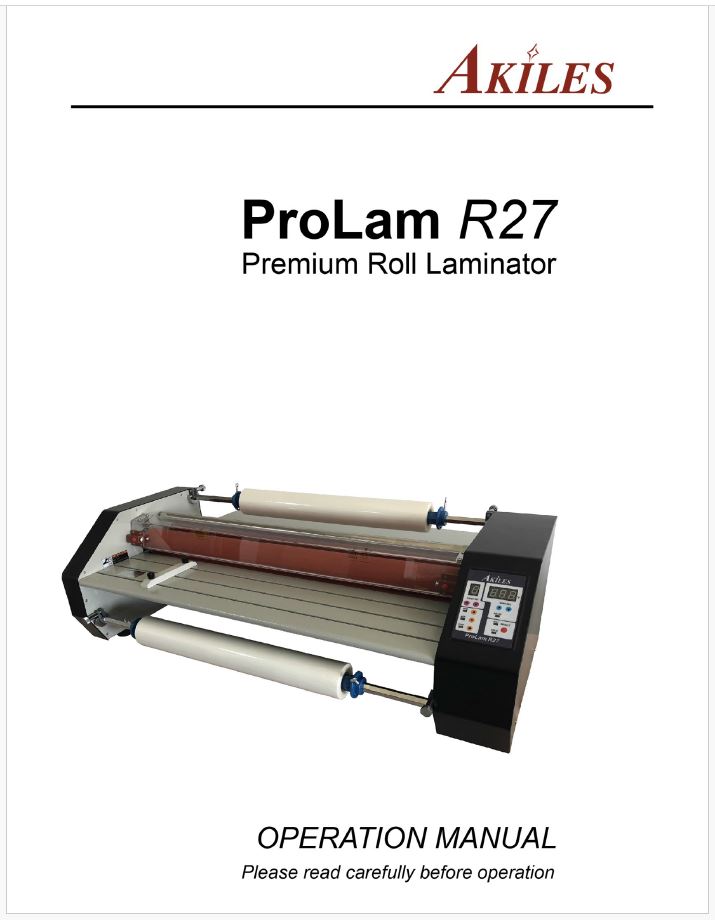

| Brochure | Operation Manual |
| Model Name | ProLam 160 | ProLam 330 | iLam Plus | ProLam Photo | ProLam Ultra | ProLam Ultra-X6 | ProLam Ultra-XL | ProLam Ultra-X10 | ProLam R27 |
|---|---|---|---|---|---|---|---|---|---|
| Model: |  |  |  |  |  |  |  |  |  |
| Width Capacity: | 6.3" (160mm) | 13" (330mm) | 12.8" (325mm) | 13" (330mm) | 13" (330mm) | 13" (330mm) | 18.9" (480mm) | 13" (330mm) | 27" (685mm) |
| Max Laminating Speed: | 21" / minute | 21" / minute | 21" / minute | 59" / minute | 53" / minute | 59" / minute | 47" / minute | 142" / minute | 43" / Minute |
| Pouch/Film Thickness: | 3 to 10 mil | 3 to 10 mil | 3 to 10 mil | 3 to 10 mil | 3 to 14 mil | 3 to 14 mil | 3 to 14 mil | 3 to 14 mil | 1.5 to 10 mil |
| Max Laminating Thickness: | 1mm | 1mm | 1mm | 1mm | 3mm | 3mm | 3mm | 3mm | 3mm |
| Heated Rollers: | 2 Hot / 2 Cold | 2 Hot / 2 Cold | 2 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 6 Hot / 4 Cold | 2 Hot |
| Speed Control: | 1 Setting | 1 Setting | 1 Setting | 9 Settings | 9 Settings | 9 Settings | 9 Settings | 9 Settings | 9 Settings |
| Reverse Switch: | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Weight: | 14 lbs. | 20 lbs. | 15 lbs. | 39 lbs. | 33 lbs. | 35 lbs. | 44 lbs. | 57 lbs. | 93 lbs. |
