Meech 261v2 DC Ionising Nozzle w/ 1/4" BSP Inlet & Flexible Outlet

Name: Meech 261v2 DC Ionising Nozzle w/ 1/4" BSP Inlet & Flexible Outlet
Brand: Meech
SKU: 261V2-32-FLEX-1/4
Price: 325.00 USD
Availability: InStock

Part Number: 261V2-32-FLEX-1/4

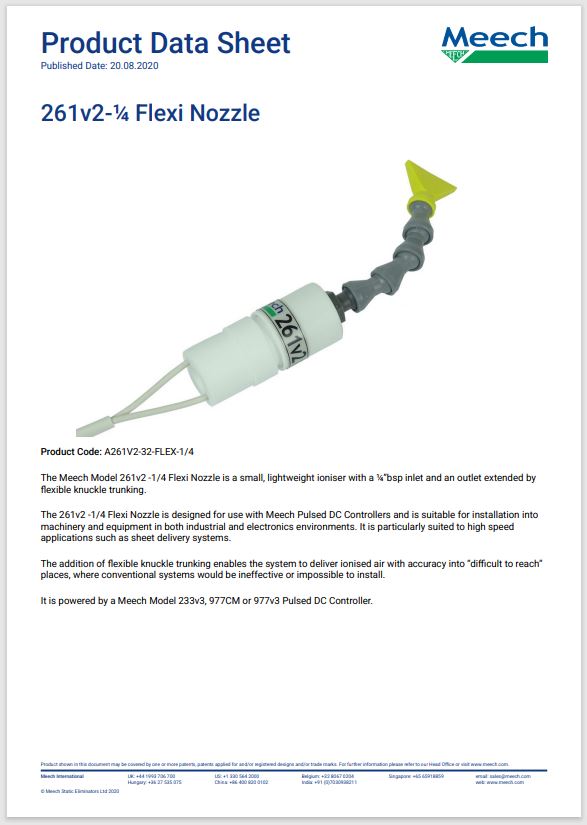

The Meech Model 261v2 Flexi Nozzle is a compact ionizer featuring a 1/4" BSP inlet and an outlet extended with flexible knuckle trunking.

This nozzle is tailored for use with a Meech Pulsed DC Controller and can be easily integrated into machinery and equipment. Simply connect compressed air on the inlet end, and ionized air will be discharged from the outlet nozzle It excels in high-speed applications, particularly in sheet delivery systems.

Meech Pulsed DC Controller Sold Separately

$325.00 /EACH

Qty

EACH

Description

Complete System:

- 261v2 Ionizing Nozzle (up to 2 per power supply)

- 233V4 Power Supply (x1)

- 900IPS Power Cable (x1)

Optional:

- Mounting Bracket

- Splitter (run more than 2 ionizing nozzles off 1 power supply, up to 14+ with additional splitters)

Specifications

Technical Information
Air Fitting (Inlet):	1/4" BSP
Air Fitting (Outlet):	Flexible trunking nozzle
Mas Air Pressure:	100 psi (7 bar)
Typical Pressure:	20 to 40 psi (1.5 to 3 bar)
Emitter Pins:	Machined Titanium (replaceable)
Decay Time:	0.8 sec at 150mm at 30 psi
Ozone:	less than 0.1 ppm
Input Voltage:	+/- 9kV DC Nominal
Ion Balance:	+/- 10V or better at set up
