Takk IonStorm XR2 Long-Range DC Ionizing Bar (10") w/10 Ft. Cable

Mouse over the image to zoom. Double-tap and hold to zoom.

Takk IonStorm XR2 Long-Range DC Ionizing Bar (10") w/10 Ft. Cable

Part Number: 300-DC-010S

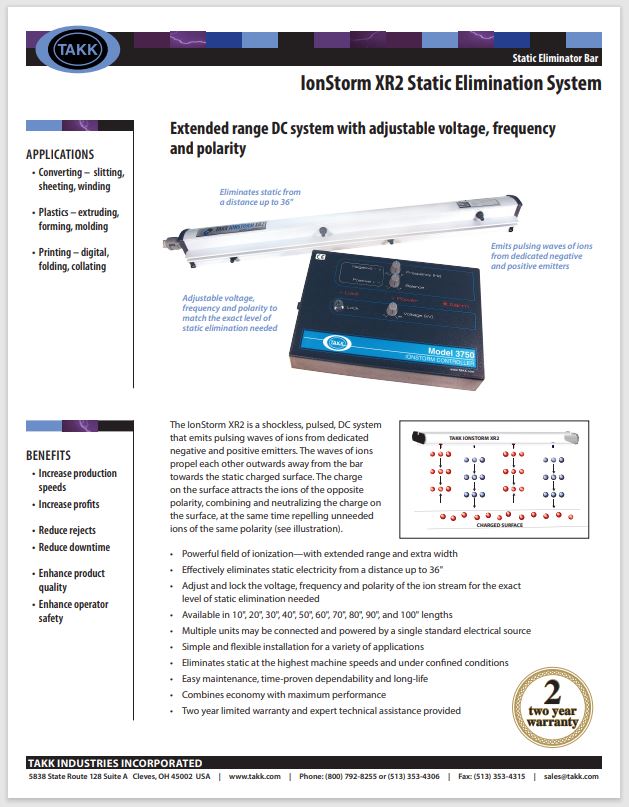

The IonStorm XR2 DC Static Bar provides a long range of ionization at distances of 36"+ from target surfaces to eliminate your costly static electricity problems. It's equipped with tungsten emitters for long-life and dependable service. The emitter pins have dedicated positive and negative ion outputs and are user-replaceable. It is housed in a polymer easy-to-clean rigid body.

Typical applications of the IonStorm XR2 include unwind/rewind, extruding, molding, sheeting, screen printing, clean room and other applications where long distance static elimination is needed without the use of forced air.

Powered by the Takk 3700SC Controller (Sold Separately).

Contact us for pricing

Takk IonStorm XR2 Long-Range DC Ionizing Bar (20") w/10 Ft. Cable

Takk IonStorm XR2 Long-Range DC Ionizing Bar (30") w/10 Ft. Cable

Takk IonStorm XR2 Long-Range DC Ionizing Bar (40") w/10 Ft. Cable

Takk IonStorm XR2 Long-Range DC Ionizing Bar (50") w/10 Ft. Cable

Takk IonStorm XR2 Long-Range DC Ionizing Bar (60") w/10 Ft. Cable

Takk IonStorm XR2 Long-Range DC Ionizing Bar (70") w/10 Ft. Cable

Takk IonStorm XR2 Long-Range DC Ionizing Bar (80") w/10 Ft. Cable

Takk IonStorm XR2 Long-Range DC Ionizing Bar (90") w/10 Ft. Cable

Takk IonStorm XR2 Long-Range DC Ionizing Bar (100") w/10 Ft. Cable

Operating Range 12" to 36" (305 - 914mm)
Power DC

Description

Specifications

Technical Data
Typical Operating Range:	12" (304mm) to 36" (915mm)
Dimensions (W x D x L):	2.125" (54mm) x 2.25" (57mm) x Up to 100" (2540mm)
Construction:	Rigid polymer body
Operating Voltage:	0 - 14 kV
Emitters:	Tungsten in polypropylene housing (replaceable)
Mounting:	Adjustable studs in T-slot on backside of bar
Connections:	Multiple bars can be powered by the controller with junction boxes
