Hohner Stitching Head, 43/6S Std. 24-28 Wire

Name: Hohner Stitching Head, 43/6S Std. 24-28 Wire
Brand: Hohner
SKU: 0541250
Price: 2980.80 USD
Availability: InStock

Part Number: 0541250

The Hohner 43/6s was designed for an excellent minimum center-to-center stitch distance of 43mm. It is operator friendly, allowing for wire length and thickness adjustments in seconds. The head design now has more wear resistant parts than older models and will last longer between maintenance periods.

This stitcher head includes a clincher assembly, wire guide, and tool kit.

$2,980.80 /EACH

Hohner Stitching Head, 43/6s Loop 6mm

Hohner Stitching Head 43/6S Loop 8mm

Hohner Stitching Head, 43/6S for Duplo DBM 250-400

Hohner Stitching Head, 43/6S for Duplo DBM 500 24-26 ga.

Hohner Stitching Head, 43/6S for Duplo DBM 500 26-28 ga.

Hohner Stitching Head, 43/6S for Duplo DBM 500, Loop 6mm

Hohner Stitching Head, 43/6S for Duplo DBM 600

Hohner Stitching Head, 43/6S for Heidelberg ST90 / ST100

Hohner Stitching Head, 43/6S w/ Stop Stitch, Loop 6mm

Hohner Stitching Head, 43/6s w/ Stop Stitch, Loop 8mm

Hohner Stitching Head, 43/6S for Horizon Stitchliner SPF30

Hohner Stitching Head, 43/6S for Horizon SPF20 / SPF200

Hohner Stitching Head, 43/6S for C. P. Bourg BDH 26-28 ga.

Hohner Stitching Head, 43/6S Theisen & Bonitz

Qty

EACH

Description Parts Finder Machine Compatibility

Specifications

Technical Data
Max Capacity:	0.24" (6mm)
Crown Width:	0.47" (12mm)
Wire Sizes:	24-28 gauge
Minimum Center-to-Center:	1.69" (43mm)
Weight:	3 lbs
Stitches per Hour:	Up to 14,000

Documents

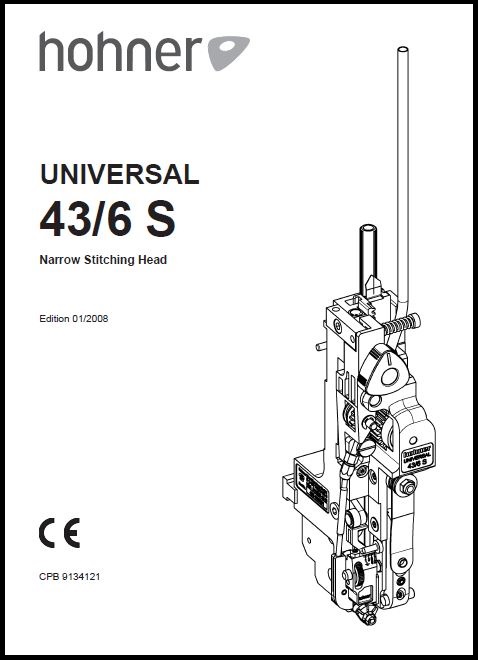

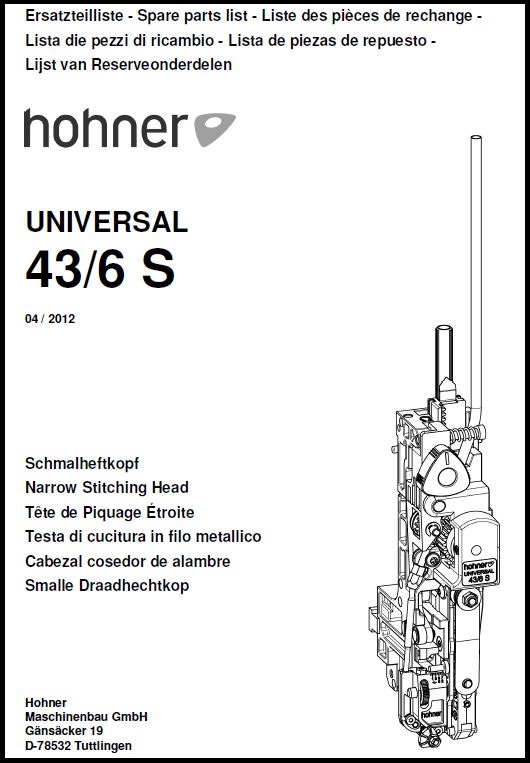

Parts Manual	Operation Manual

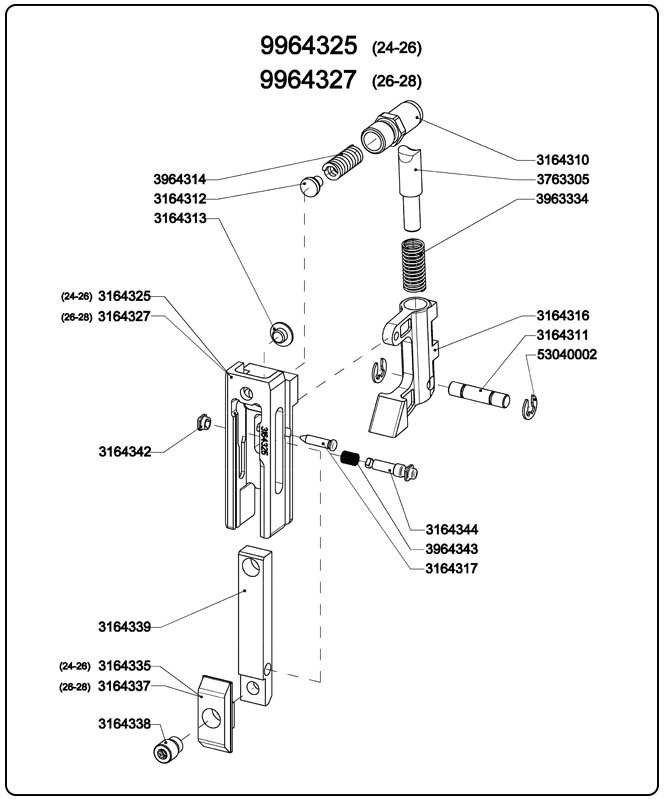

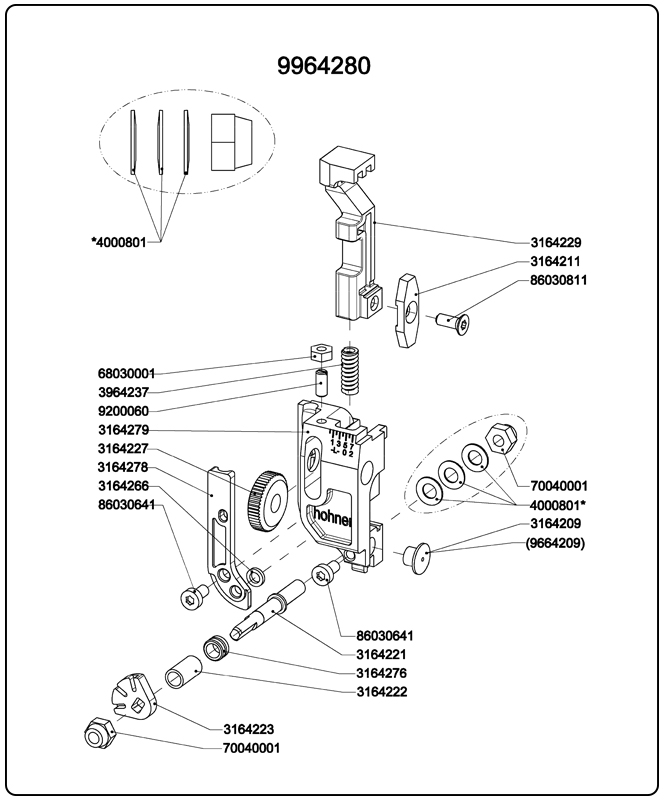

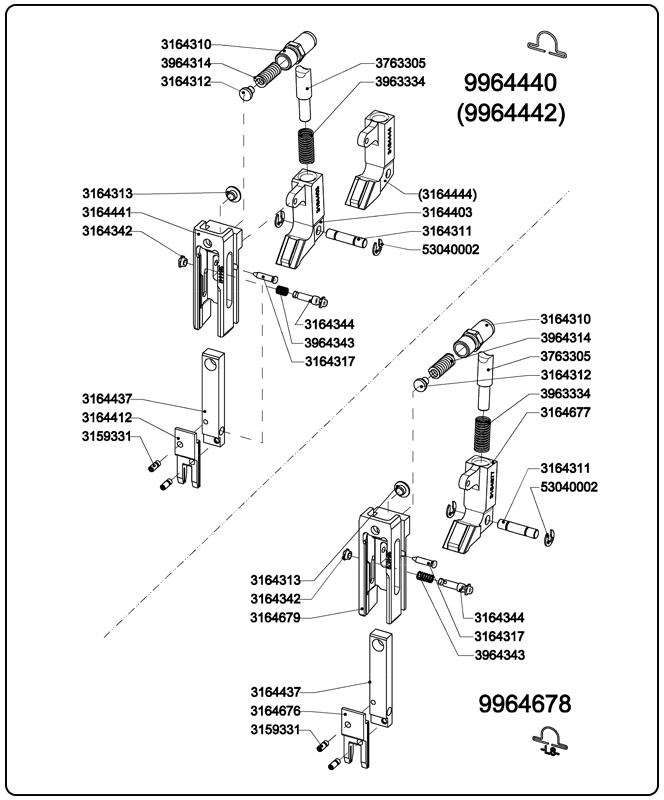

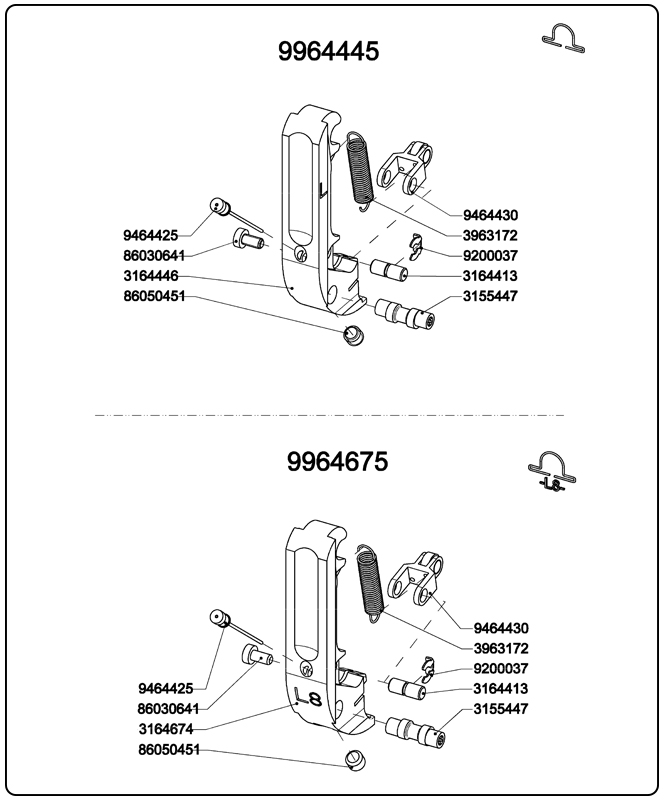

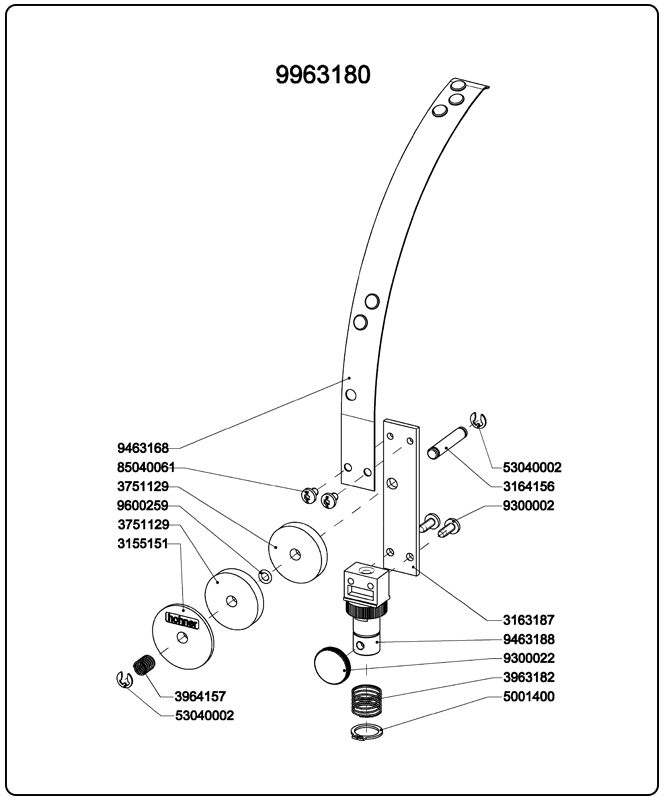

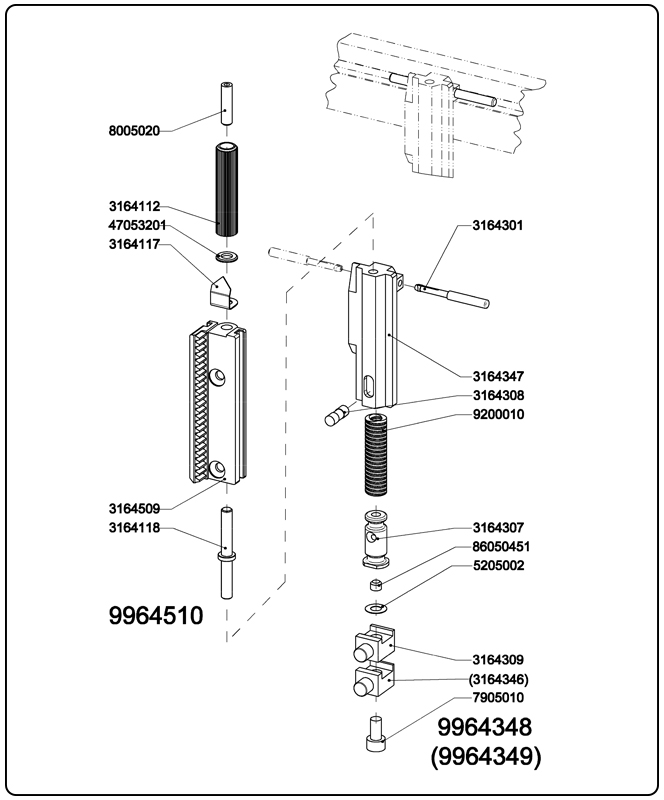

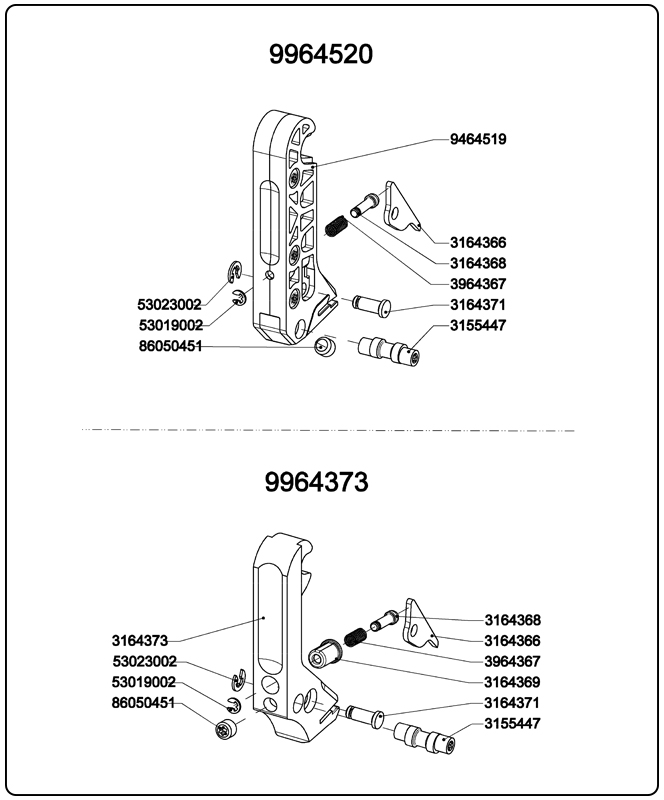

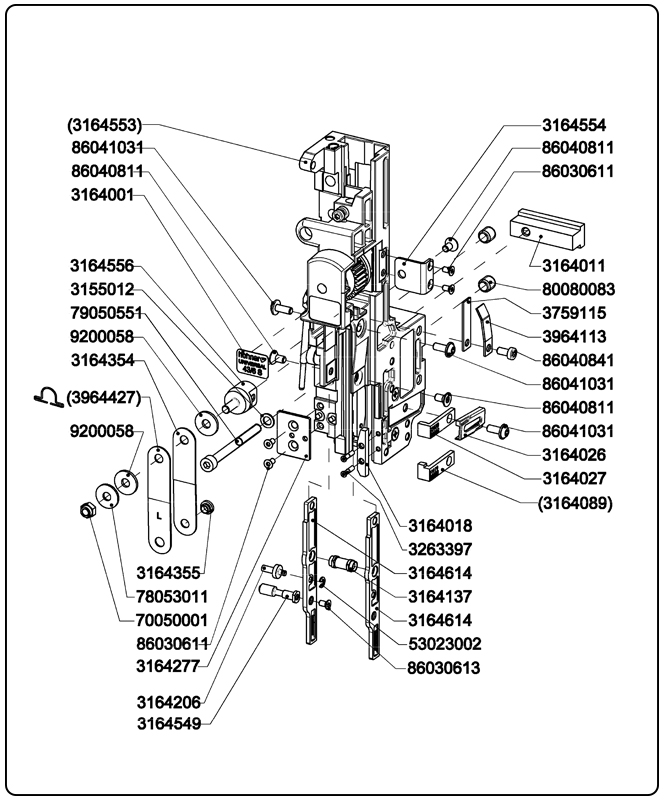

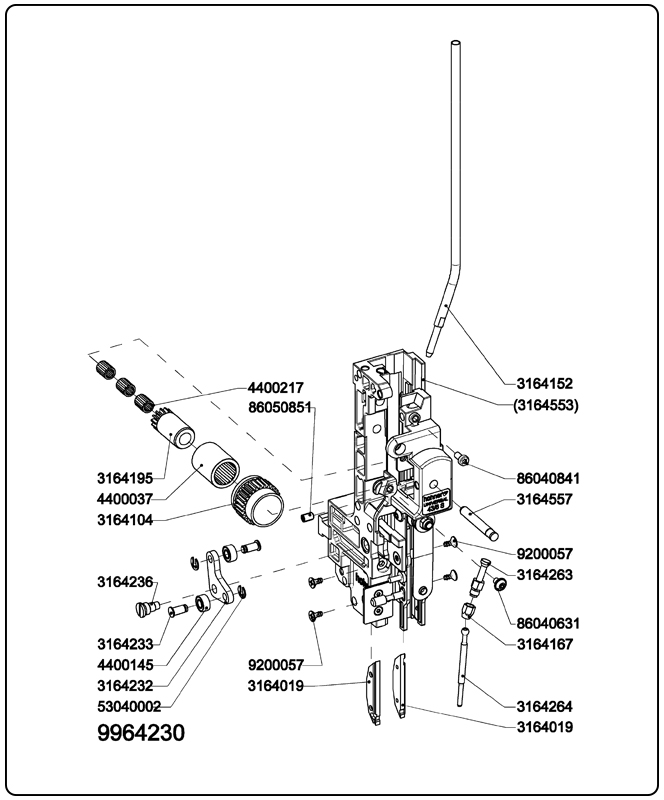

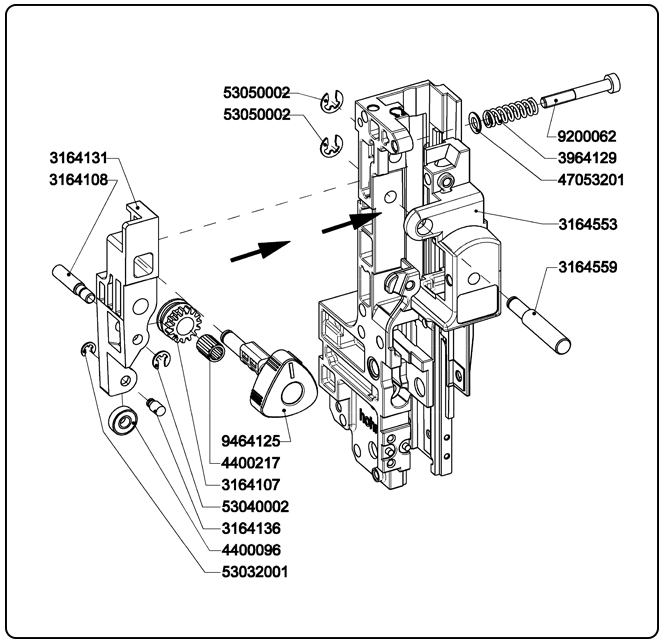

43/6S (2012) Stitcher Head

Click numbers in the diagram for product pages

Machines
AM Graphics	Harris 512 & 560	McCain 2500LS
Bielomatik P233	Harris 562	McCain 3000LS
Bielomatik P390	Harris 650 & 655	Omnibinder
Deluxe/Bostitch 17AW	Harris Multibinder	Omegabinder
Brehemer ST200, 270,300	Kugler 376-4	Parker
Brehemer T1000/S1000	Laconda	Rosback 201, 202, 203
Fennimore	Macey 560 & 562	Setmaster
Gidico	Macey Omnibinder	Stahl ST100
Harris 120	McCain Speedbinder	Will
Harris 250	McCain 1800XL	Xerox Docutec
Harris 455 (Prosetter)	McCain 2000XL
