Mid-Volume Desktop w/ Touchscreen

The Formax AutoSeal FD 2006 is a mid-volume pressure sealer that processes up to 8,000 forms per hour with precision and ease, thanks to its user-friendly touchscreen and advanced three-roller feed system. Supporting multiple fold types and form sizes up to 14", it’s a versatile, compact solution ideal for offices handling checks, reports, and tax forms—delivering speed, accuracy, and quiet operation in one reliable machine.

Features

• Mid-volume pressure sealer

• Up to 8,000 forms per hour

• Handles forms up to 14" long

• Color touchscreen control panel

• Z, C, Uneven Z, Half, and custom folds

• 250-form hopper capacity

• Six-digit resettable counter

• Drop-in feed system

• Easy-adjusted pre-marked fold plates

• 75,000 monthly duty cycle

• Optional 18" conveyor and jogger

• Insulated for quiet operation

• UL, CE, and CUL approved

Specifications

Technical Data
Hopper Capacity:	Up to 250 forms 20#
Fixed Speed:	Up to 8,000 forms per hour, based on 11" Z fold
Paper Size:	Up to 8.5" W x 14" L
Fold Types:	Z, C, uneven Z and C, half, custom
Monthly Duty Cycle:	Up to 75,000/month
Power:	FD Model: 120 volts AC 50/60Hz FE Model: 220 volts AC 50/60Hz
Dimensions:	24" L x 17" W x 13" H
Dimensions w/ 18" Conveyor & Cabinet:	46" L x 22" W x 44" H
Document Sequence:	Standard sequence is A-to-Z input, Z-to-A output
Weight:	88.5 lbs
Safety Certifications:	UL, CE, and CUL



Documents

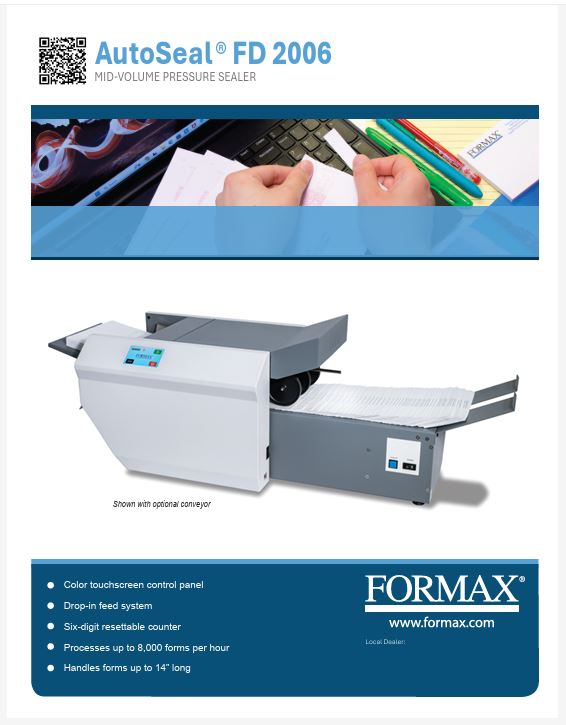

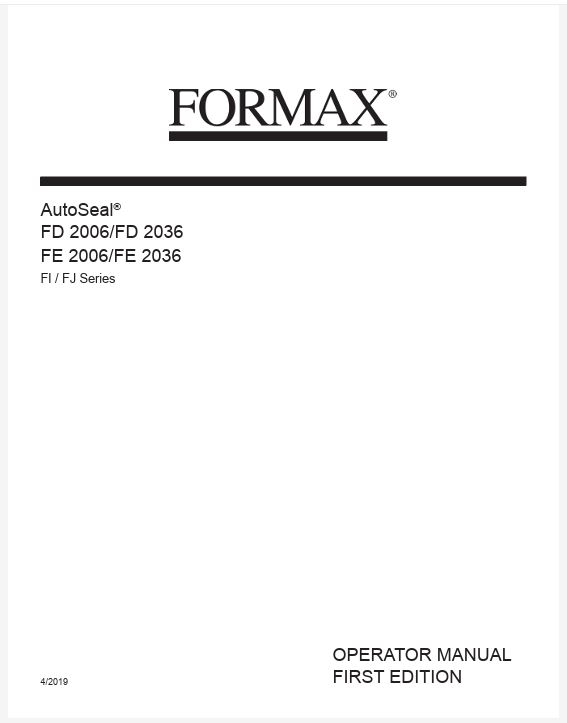

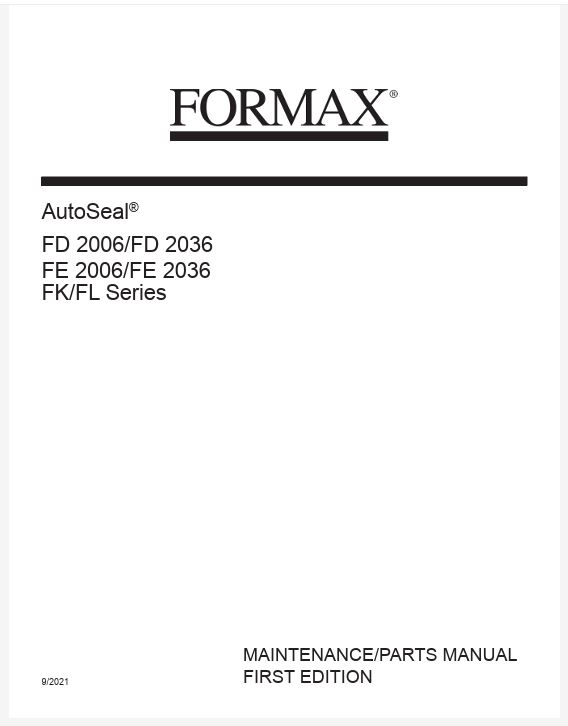

Spec Sheet	User Manual	Parts Manual



Video
