High Volume Production - Bottom Air Feed

The Formax AutoSeal FD 2096 Production Pressure Sealer streamlines mid-volume mailing by processing up to 30,000 forms per hour with its bottom-suction air-feed system for continuous loading. Featuring intuitive controls, minimal setup, and durable components, it offers a powerful, quiet, and efficient solution for high-volume pressure-seal operations.

Features

• Processes up to 30,000 forms per hour

• Bottom-suction air-feed system

• Continual form loading capability

• Rugged metal fold plates & rugged locking casters

• Heavy-duty polyurethane foam rollers

• 17" ball transport deck

• Sound-dampening fold plate covers

• 6-digit resettable LED counter

• 24" collapsible output conveyor

• Variable speed control

• Rotating air suction drum

• 7-point quick-release fold stops

• Infrared fault detection

• Static eliminator brush

• Plexi-cover with safety interlock

• Mid-volume production usage

Specifications

Technical Data
Hopper Capacity:	Up to 350 forms 24#
Speed:	Up to 30,000 forms per hour
Usage:	Mid-Volume production
Form Size:	Up to 12" W x 17" L
Dimensions (Conveyor Extended):	86" L x 28" W x 42" H
Dimensions: (Conveyor Closed):	64" L x 28" W x 42" H
Weight:	450 lbs
Power:	120V 60Hz, 30Amp, single phase
Power Plug:	NEMA L5-30P



Documents

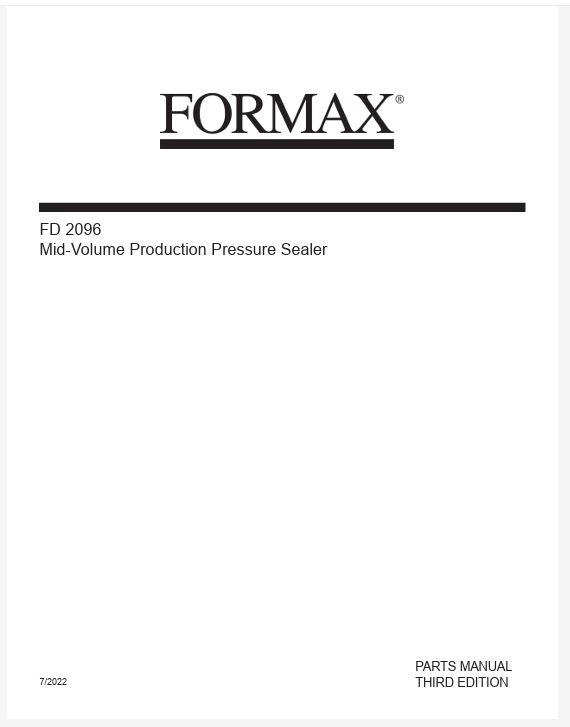

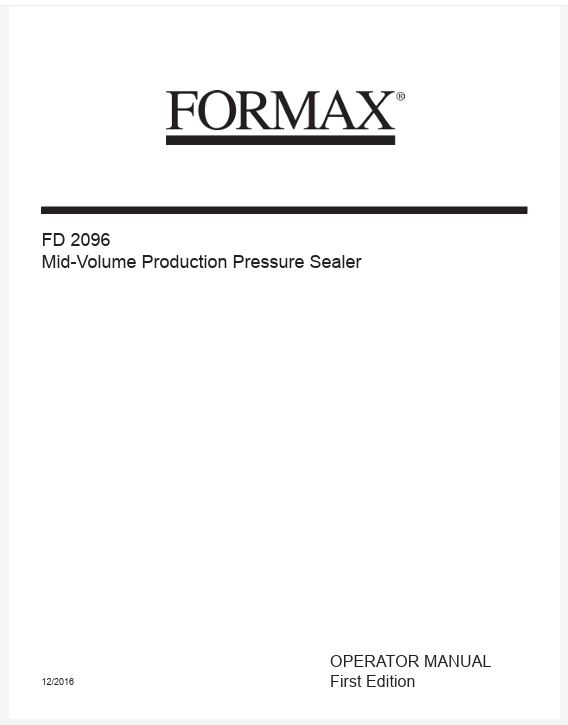

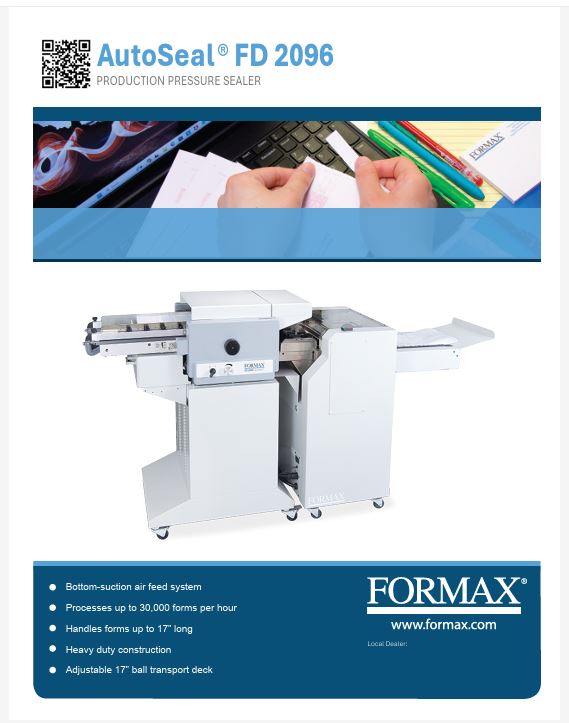

Spec Sheet	User Manual	Parts Manual



Video
