CT-18/30E Polyester Folder Gluer Belt 3/4"

Name: CT-18/30E Polyester Folder Gluer Belt 3/4"
Brand: Habasit
SKU: CT-18/30E-3/4
Price: 5.01 USD
Availability: InStock

Part Number: CT-18/30E-3/4

Main Industry Segments: Cardboard converting, Paper manufacturing and processing

Applications: Folder-gluer belt, Live roller drive belt

Special Features: Abrasion resistant, adhesive-free joint, constant coefficient of friction, dimensionally stable longitudinal flexibility, outstanding flex-fatigue

$5.01 /PER FOOT

CT-18/30E Polyester Folder Gluer Belt 1"

Belting Thickness (mm) 3.00mm

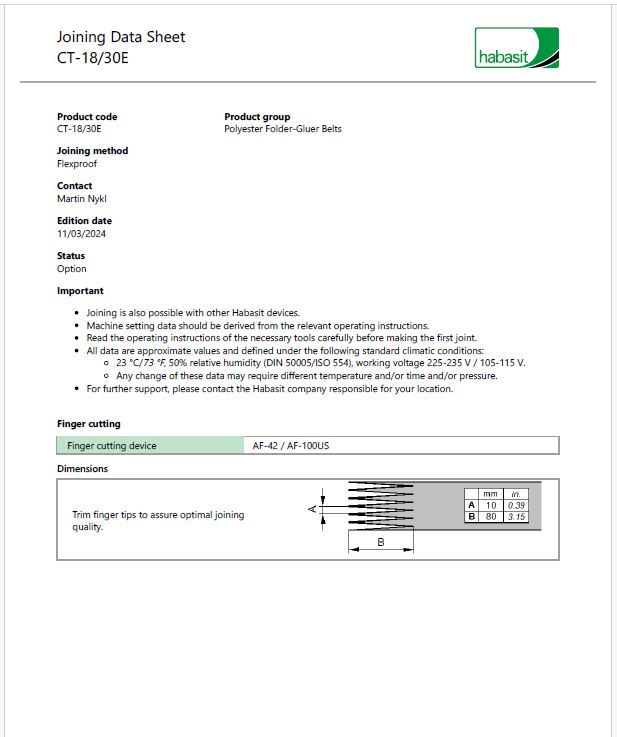

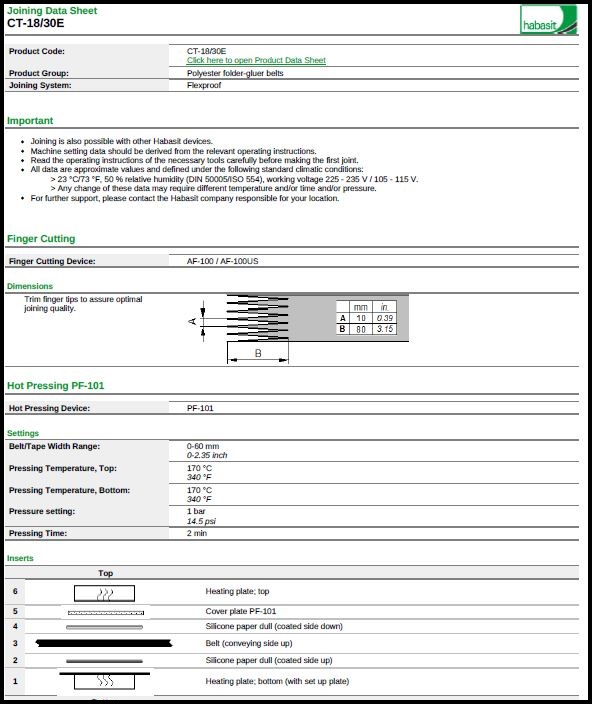

Belting Joining Method Flexproof

Qty

PER FOOT

Description

Specifications

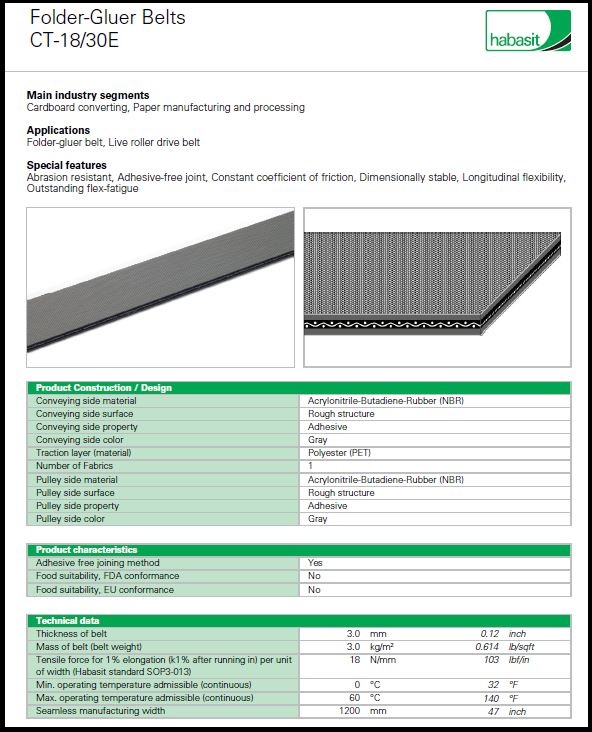

Product Construction
Conveying Side Material:	Acrylonitrile-Butadiene-Rubber (NBR)
Conveying Side Surface:	Rough Structure
Conveying Side Property:	Adhesive
Conveying Side Color:	Gray
Traction Layer:	Polyester (PET)
Number of Fabrics:	1
Pulley Side Material:	Acrylonitrile-Butadiene-Rubber (NBR)
Pulley Side Surface:	Rough Structure
Pulley Side Property:	Adhesive
Pulley Side Color:	Gray

Product Data
Joining Method:	Flexproof
Belt Thickness:	3mm (0.12 in)
Tensile Force (1% elongation/unit of width):	18 N/mm (103 lbf/in)
Min. Operating Temp:	0°C (32°F)
Max Operating Temp:	60°C (140°F)
Min Pulley Diameter:	30mm (1.18 in)
