Case Sealer Belting

Specify length & properties — we’ll quote fast and save you money

Case sealer belting category photo

Give us a call for your case sealer belting needs. Specify the length and properties stated below and we can save you money on the belts you're buying now. We can provide belting for many machine brands including 3M, BestPack, Intertape, Little David, Loveshaw, and more. Contact us with specifications listed below.

Things to consider when choosing a belt

Material

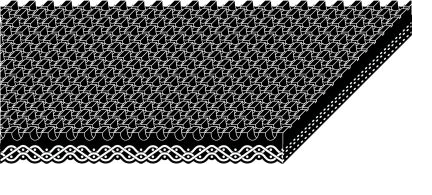

Common belt material options

The material you use will be based on application and preference. Refer below for the more common materials and their technical specifications.

Joining Method

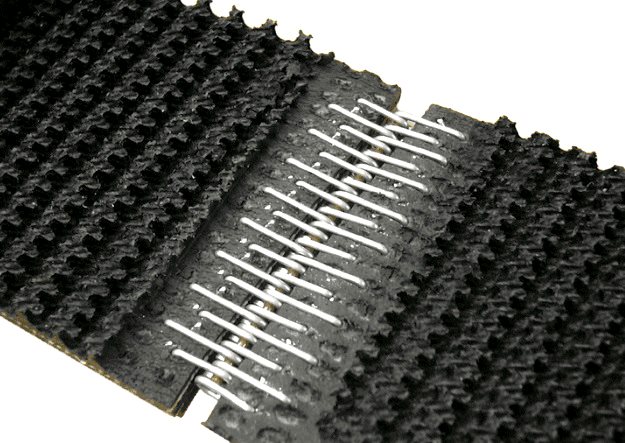

Endless vs. metal laced belt ends

Belts can be prepared endless or with metal lace/clippers that connect ends together. Metal lace makes the change-out process more efficient.

V-Guide

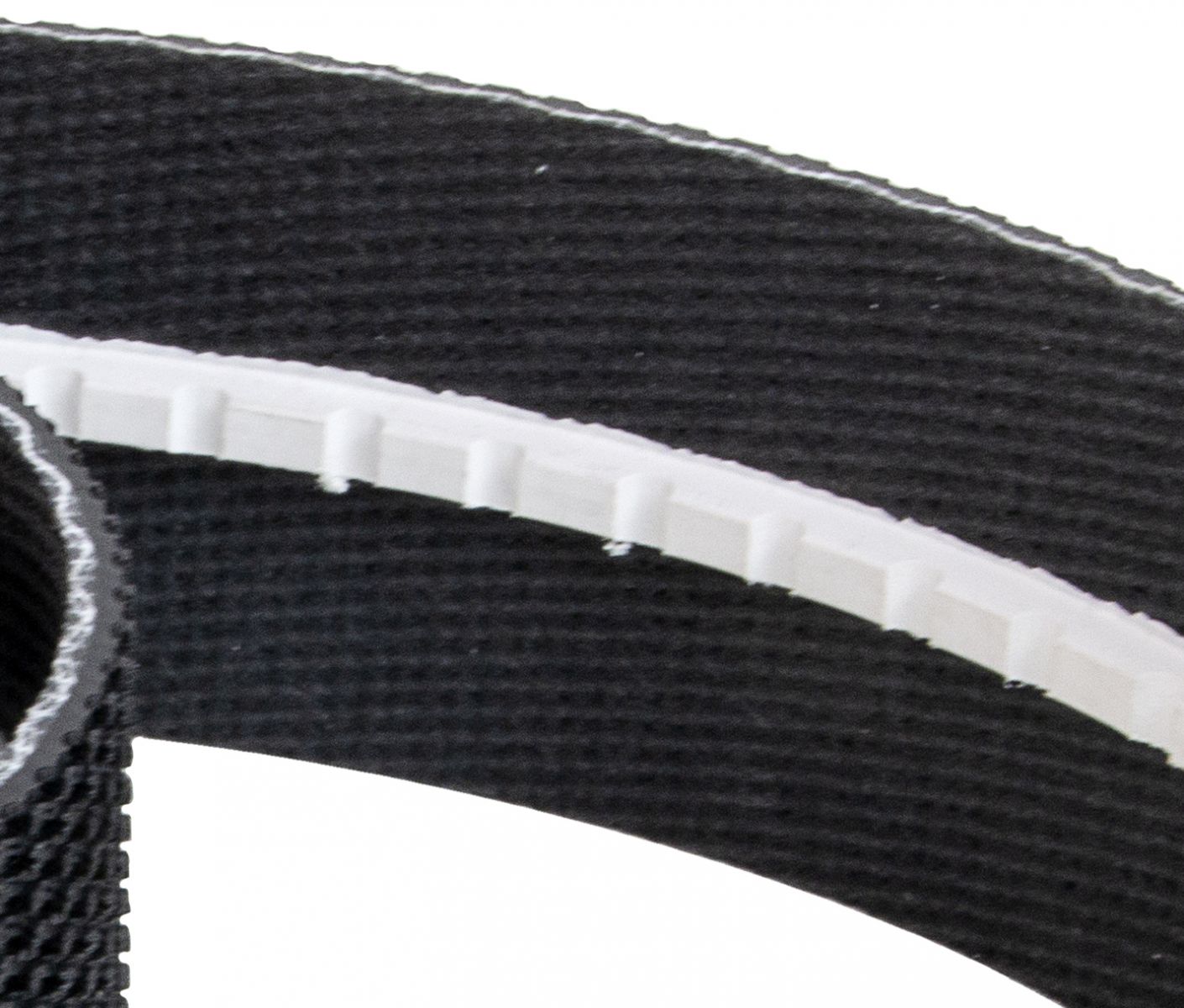

Belt with center V-guide

Many machines include pulley slots for a V-guide. Adding a V-guide to the drive side can improve tracking.

Popular Belting Options

A120RT-B

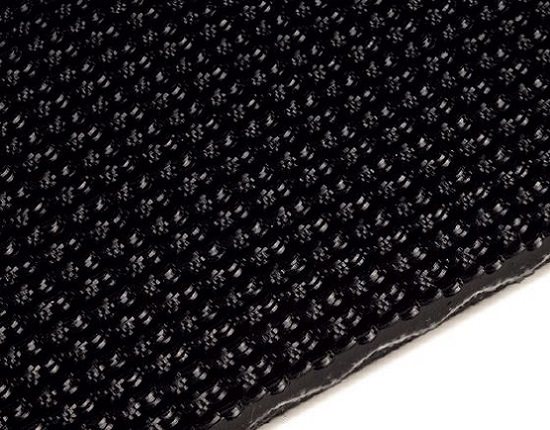

A120RT-B black rough top belt
Most Popular
  • Material: PVC Black Rough Top
  • Number of Fabrics: 1
  • Belt Thickness: 5.8 mm (0.23 in.)
  • Min. Pulley Diameter: 79 mm (3.10 in.)
  • Temp. Range: −10° to 180° F
  • Anti-Static: No
SAG-12E

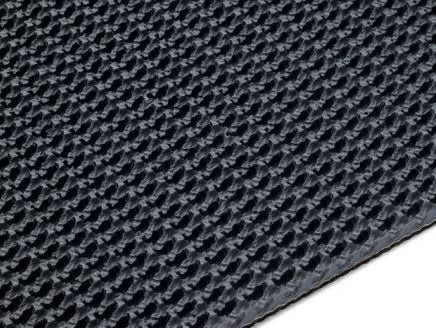

SAG-12E black grip structure belt
  • Material: EDPM Black Grip Structure
  • Number of Fabrics: 2
  • Belt Thickness: 5.2 mm (0.20 in.)
  • Min. Pulley Diameter: 60 mm (2.36 in.)
  • Temp. Range: −22° to 212° F
  • Anti-Static: Yes
SAG-8E

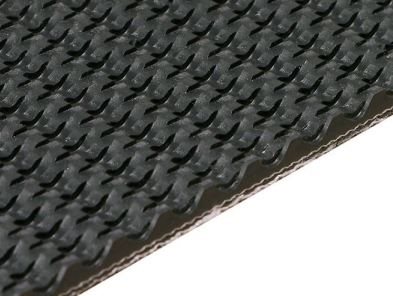

SAG-8E anthracite grip structure belt
  • Material: PVC Anthracite Grip Structure
  • Number of Fabrics: 2
  • Belt Thickness: 4.4 mm (0.17 in.)
  • Min. Pulley Diameter: 50 mm (1.97 in.)
  • Temp. Range: 14° to 140° F
  • Anti-Static: Yes
HAG-12E

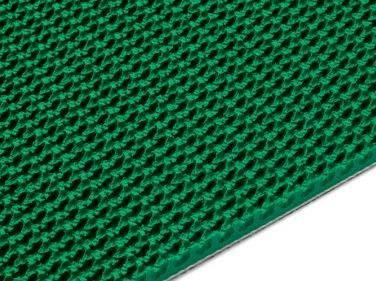

HAG-12E green grip structure belt
  • Material: NBR Green Grip Structure
  • Number of Fabrics: 2
  • Belt Thickness: 5.8 mm (0.23 in.)
  • Min. Pulley Diameter: 80 mm (3.15 in.)
  • Temp. Range: 32° to 212° F
  • Anti-Static: Yes
NAJ-8EEDV

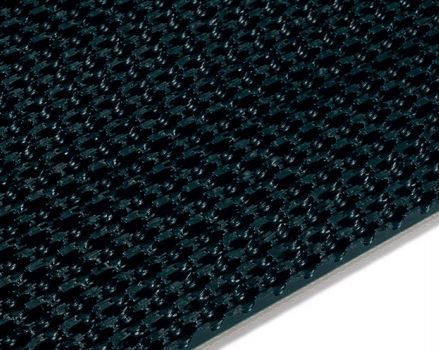

NAJ-8EEDV dark green jink wave belt
  • Material: PVC Dark Green Jink Wave
  • Number of Fabrics: 2
  • Belt Thickness: 5.5 mm (0.22 in.)
  • Min. Pulley Diameter: 60 mm (2.36 in.)
  • Temp. Range: 14° to 158° F
  • Anti-Static: Yes
TM120RT-B

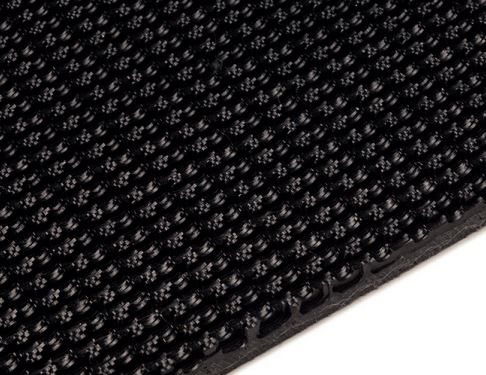

TM120RT-B black rough top belt
  • Material: PVC Black Rough Top
  • Number of Fabrics: 1
  • Belt Thickness: 5.7 mm (0.22 in.)
  • Min. Pulley Diameter: 71 mm (2.80 in.)
  • Temp. Range: −10° to 158° F
  • Anti-Static: No

More materials and variations available — please call!
