• High Volume Punch Capacity: Up to 20 sheets of 20lb paper per cycle. Foot pedal operated.
• Heavy-Duty Motor & Gearbox: Provides more than enough punch power for all die sets.
• Interchangeable Die Sets with Quick Die Change Design: Easily change from one punch pattern to another within seconds, no tools needed!
• Fully Disengageable Pins on all Dies: Allows punching of all paper sizes without partially punched holes at either end.
• Choice of 4 Different Punch Dies: Choose from Comb (rectangular holes), Wire 2:1 (square holes), Wire 3:1 (square holes) and Coil 4:1 (0.2475") (round holes).
• Adjustable Depth Margin: Available for all punch dies, this key feature provides the correct punch margin depth for each element or book size.
• 12? Single Punch Length with Open Ends: Enables easy punching of Letter or A4 sizes, as well as even longer sheet sizes.
• Built-in Anti-Jam (Reverse) Feature: When sheet overload is detected, machine automatically retracts and stops punch operation to avoid downtime.
• Rugged Heavy-Duty Design: All metal construction, including heavy cast side plates. Non-skid feet.
• Weight: 51 Lbs
• One year warranty
| Technical Data | |
| Model: | FlexiPunch-E |
| Available Die Sets & Hole Shape: | COMB (rectangular) WIRE 2:1 (square) WIRE 3:1 (square) COIL 4:1 (0.2475" (round) |
| Operation: | Electric (Foot Pedal operated) |
| Single Punch Capacity: | Up to 20 sheets of 20 lbs paper |
| Single Punch Length: | 12" (Letter or A4 size) with open ends for longer sheets |
| Motor & Gear Box: | Heavy-Duty |
| Fully Disengageable Pins: | Yes (on all die sets) |
| Adjustable Depth Margin: | Yes (4-step adjustment) |
| Machine Dimensions: | 17.25" L x 16" W x 9.25" H (machine) 20" L x 18.5" W x 13.5" H (carton) |
| Die Set Dimensions: | 16.5" L x 4.75" W 6.75" H (die set) 18.5" L x 6.75" W x 10.5" H (carton) |
| Machine Weight & Volume: | 51 lbs & 2.91 CbFt |
| Die Set Weight & Volume: | 18 lbs & 0.76 CbFt |
| Warranty: | One year |
 |  |

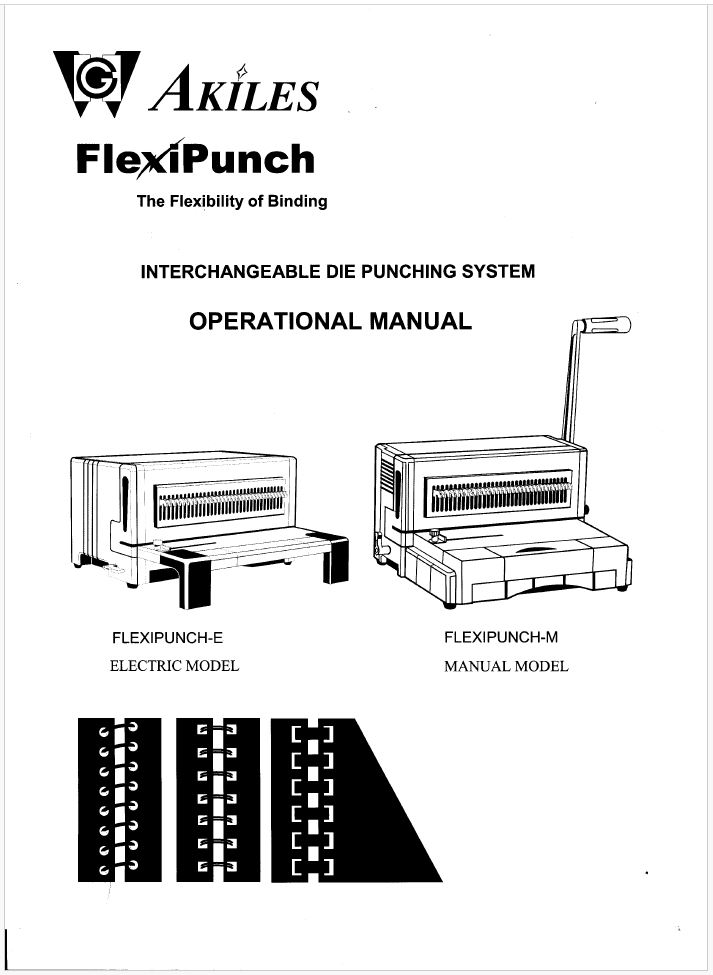

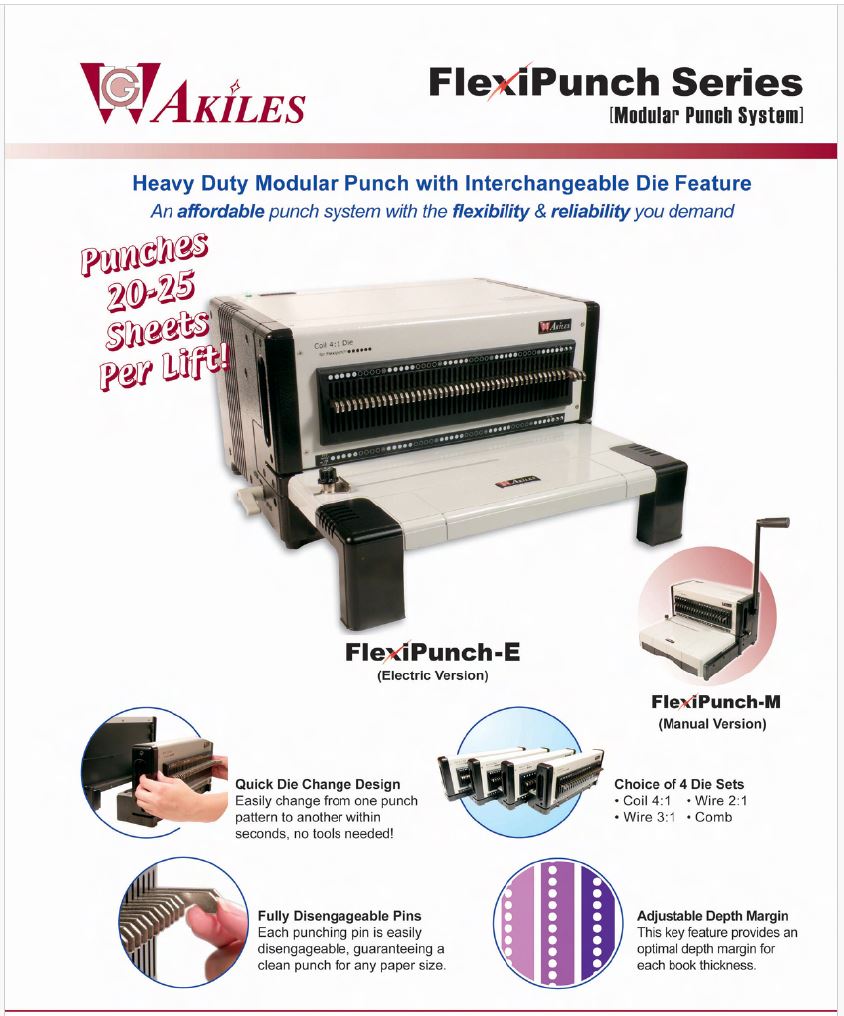

| Brochure | Operation Manual |
